16 100Mbps PoE downstream network ports, 2 gigabit network ports, and 1 gigabit SFP optical port comply with IEEE 802.3af/at standard, with 200/300W power options for the entire machine
The maximum output power of a single port is 30W, and the overall backplane bandwidth is up to 9.2Gbps
Intelligent Dip switch, supporting VLAN, Default and Extend modes
Configuration free feature, plug and play, simple installation and use, convenient maintenance and management

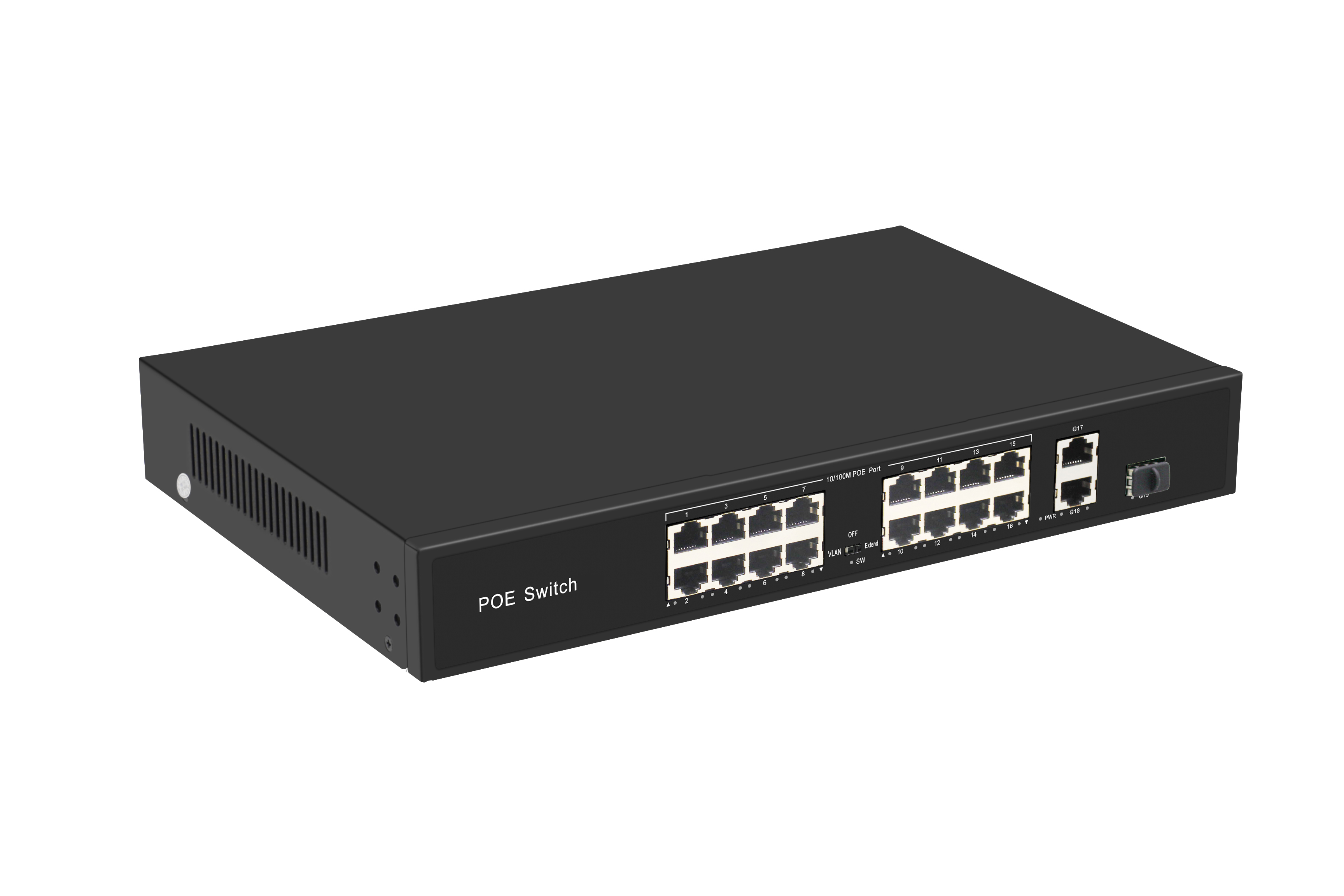

19 port 100 Gigabit intelligent standard PoE switch, using high-quality and high-speed network IC and the most stable POE chip. The POE port meets the 802.3af or 802.3at standards. This series of POE switches can provide seamless connection for 10/100M Ethernet, and the POE power supply port can automatically detect and supply power to powered devices that meet the IEEE802.3af or IEEE802.3at standards. Non POE devices do not provide power for intelligent detection and only transmit data.
POE technology (Power over Ethernet) is the power over Ethernet technology. It means that while transmitting data signals for some IP based terminals (such as IP phones, wireless access APs, network cameras, etc.), it also provides DC power supply technology for this device. These devices receiving DC power supply are called power receiving devices.
With simple and convenient installation and maintenance methods and rich business features, it helps users create a safe and reliable high-performance network. Mainly positioned at the core or convergence layer of user networks such as industrial parks, buildings, factories and mines, government agencies, and residential broadband; Can be widely used in Ethernet access scenarios such as small and medium-sized enterprises, internet cafes, hotels, schools, etc
| product name | 19 Port 100 Gigabit Unmanaged PoE Switch | |
| Model | ZT-IE6000S-16TP2GT1GS | |
| Port Definition | 16 100Mbps POE ports+2 Gigabit Ethernet ports+1 Gigabit optical port | |
| performance | Mean time between failures: 100000 hours Backplane bandwidth: 9.2Gbps Packet forwarding rate: 6.844Mpps MAC address table: 2K Package cache: 1.5Mb Forwarding mode: store and forward | |
| network protocol | IEEE802.3 IEEE802.3u IEEE802.3x IEEE802.3ab IEEE802.3z | |
| POE parameters | PoE standard: Meets IEEE802.3af/IEEE802.3at Single port maximum: 15.4 W (IEEE 802.3af) Single port maximum: 30 W (IEEE 802.3at) PoE compatibility: IEEE 802.3af/at adaptive POE port output voltage: DC 52V POE power supply core: 1/2+; 3/6- | |
| Dialing function | Vlan: Port isolation mode, in which the POE ports (1-16 ports) of the switch cannot communicate with each other and can only communicate with the UP link port, which helps prevent broadcast storms and improve network stability; OFF: Normal mode, all interfaces can communicate with each other, with a transmission distance of less than 100 meters and an adaptive transmission rate of 10M/100M; Extend: Link extension mode, in which the POE power supply and data transmission distance of the switch can be extended to 250 meters, and the transmission rate can be increased to 10M; | |
| Network transmission medium | 10Base-T: UTP/STP above Cat6 (≤ 250 meters) 100Base-TX Cat5 or above UTP/STP (≤ 100 meters) 1000Base TX: Cat5 or above UTP (≤ 100 meters | |
| Fiber optic indicators | Multimode fiber: 850nm, 1310nm Transmission distance: 550m/2Km Single mode fiber: 1310nm, 1550nm Transmission distance: 20/40/60/80/100/120Km | |

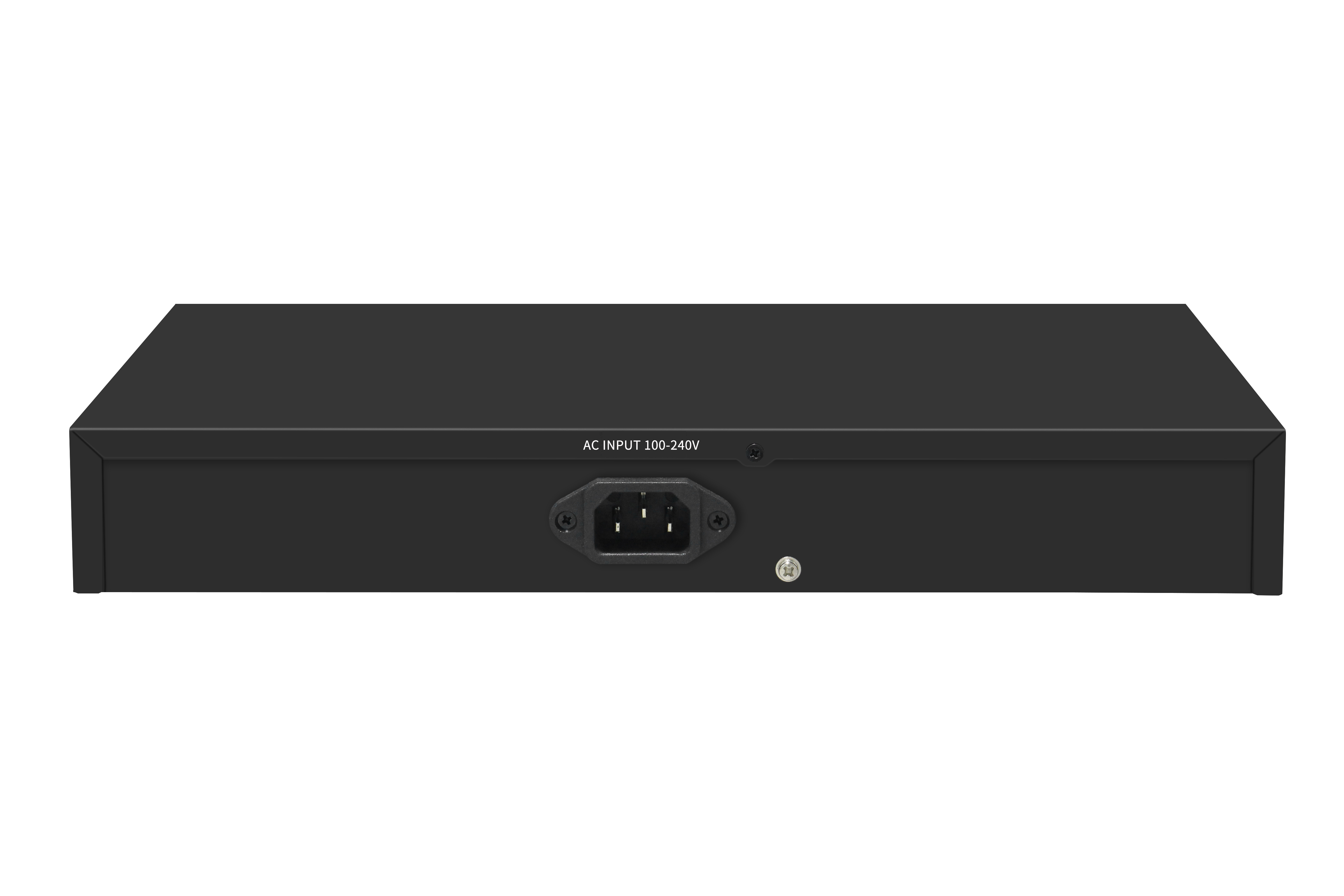

| supply voltage | Voltage input: AC 100-240V Power configuration: 52V2.3A Total power: 120W | |
| LED indicator light | PWR | Always on: The device is powered on |
| (Power indicator light) | Not on: The device is not powered on | |
| SW | Not lit: OFF | |
| (Dial light) | Always on: VLAN | |
| Slow flashing: Extend | ||
| Always on: Link connection is normal | ||
| (Link connection light) | Flashing: Data transmission | |
| Not lit: Link not working | ||
| work environment | Working temperature: -20~50 ° C Storage temperature: -40~85 ° C Working humidity: maximum relative humidity of 90%, non condensing Storage humidity: maximum relative humidity of 95%, non condensing Working height: maximum 10000 feet (3000 meters) Storage height: up to 10000 feet (3000 meters) | |
| Physical specifications | Product size (L × W × H) 270mm * 180mm * 45mm Packaging size (L × W × H) : 312mm * 262mm * 84mm Product weight: 1.4kg Packaging weight: 1.8kg | |
| packing list | 1. Switch: 1 set 2. Power cord: 1 piece 3. Instructions: 1PCS 4. Warranty card and certificate: 1PCS 5. 1U ear hook: 1 pair | |
| Packing information | Outer box size: 540 * 435 * 332mm Packing quantity: 10 units Packing weight: 19KG | |
| safety certification | CE、FCC、CCC、RoHS | |
| warranty | 2 years | |
