16 Gigabit PoE network ports+2 Gigabit network ports+2 Gigabit SFP optical ports+1 Console port
Layer 2 network management, supporting business functions such as routing/DHCP/VLAN/MAC address/ACL/QoS
Support security control strategies such as 802.1X authentication, ARP intrusion detection, IP source protection, DoS protection, etc
Support network protection functions such as STP/RSTP/MSTP spanning tree protocol, dynamic/static link aggregation, etc
Support web, TELNET, CLI, SSH, SNMP network maintenance and management methods
Port protection, lightning protection level Surge: 6KV

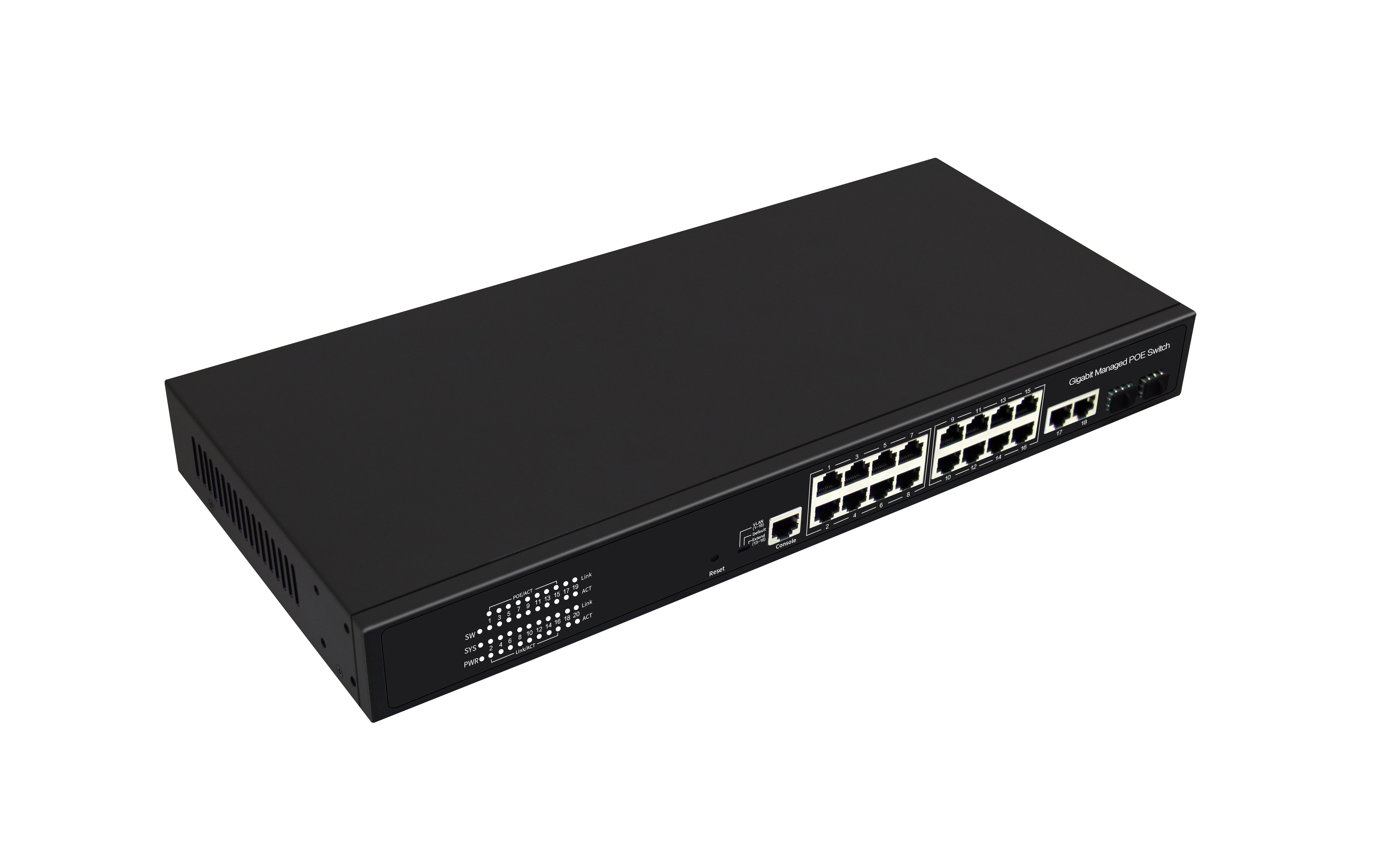

20 port Gigabit managed PoE switch, using high-quality and high-speed network IC and the most stable PoE chip. The PoE port meets the IEEE802.3af/at standard. This series of PoE switches can provide seamless connection for 10/100/1000M Ethernet, and the PoE power supply port can automatically detect and supply power to the standard receiving devices. Non PoE devices do not provide power for intelligent detection and only transmit data.
PoE technology (Power over Ethernet) is the power over Ethernet technology. It means that while transmitting data signals for some IP based terminals (such as IP phones, wireless access APs, network cameras, etc.), it also provides DC power supply technology for this device. These devices receiving DC power supply are called power receiving devices.
| General performance indicators | ||
| product name | 10-port Gigabit managed PoE switch | |
| Model | ZT-IE6250S-8GP2GS | |
| Port Definition | 8 Gigabit PoE network ports+2 Gigabit SFP ports+1 management port | |
| network protocol | IEEE802.3 IEEE802.3u IEEE802.3ab IEEE802.3x IEEE802.3z | |
| PoE parameters | PoE standard: Meets IEEE802.3af/IEEE802.3at Single port maximum: 15.4 W (IEEE 802.3af) Single port maximum: 30 W (IEEE 802.3at) PoE compatibility: IEEE 802.3af/at adaptive PoE port output voltage: DC48-55V PoE power supply core: 1/2+; 3/6- | |
| Network transmission medium | 10BASE-T: Cat3, 4, and 5 UTP (≤ 100 meters) 100BASE-TX: Cat5 or above UTP (≤ 100 meters) 1000BASE-TX: Cat5 or above UTP (≤ 100 meters) | |
| Fiber optic indicators | Multimode fiber: 850nm, 1310nm Transmission distance: 550m/2Km Single mode fiber: 1310nm, 1550nm Transmission distance: 20/40/60/80/100/120Km | |
| Dialing Code Definition | VLAN: 1-8 ports are isolated from each other and only interconnected with uplink ports 9 and 10 Default: 1-10 port standard switching, all ports communicate freely Extend: 7-8 ports support 250 meter link extension, with a speed of 10M | |
| Reset | Short press to restart, long press for 5 seconds to restore factory settings | |
| LED indicator light | POWER | Always on: The device is powered on |
| Not on: The device is not powered on | ||
| Always on: VLAN | ||
| SW | Not lit: Default | |
| Blinking: Extend | ||
| SYS | Blinking: System startup in progress | |
| Long light: The system is running normally | ||
| 9-10 | Always on: Link connection is normal | |
| Flash: Fiber optic data transmission is normal | ||
| Not lit: Fiber optic link not working | ||
| PoE/ACT | Always on: PoE power supply is normal | |
| 1-8 | Not on: PoE not powered | |
| link/ACT | Always on: Link connection is normal | |
| 1-8 | Blinking: data transmission | |
| Not lit: Link not working | ||
| power supply | Input voltage: DC 48-52V Adapter: 52V2.3A Total power: 120W | |
| Dimension | Product size (L × W × H) : 200mm * 120mm * 45mm Packaging size (L × W × H) : 303mm * 190mm * 60mm Product weight: 0.7kg Packaging weight: 1.2kg | |
| work environment | Working temperature: -20~50 ° C Storage temperature: -40~85 ° C Working humidity: maximum relative humidity of 90%, non condensing Storage humidity: maximum relative humidity of 95%, non condensing Working height: maximum 10000 feet (3000 meters) Storage height: up to 10000 feet (3000 meters) | |
| authentication | CE、FCC、CCC、RoHS | |
| mean time between failures | 100,000 小時 | |
| mean time between failures | 1. Switch: 1 set 2. Instructions: 1PCS 3. Certificate of conformity and warranty card: 1PCS 4. Power cord: 1 piece 5. 52V power adapter: 1PCS 6. Serial port cable: 1 piece 7. User manual CD: 1 piece 8. Hanging ears: 1 pair (optional) | |
| Hardware parameters | ||
| exchange capacity | 192Gbps | |
| packet forwarding rate | 14.88Mpps | |
| Package cache | 4M | |
| Memory capacity | 128MB | |
| Flash memory capacity | 16MB | |
| MAC address table | 8K | |
| VLAN | 4096 | |
| Giant Zhen | 9.6Kbytes | |
| Forwarding mode | store and forward | |
| Layer 2 software functions | ||
| Port Management | Enable/disable ports Speed, duplex, MTU settings Flow control settings Port information viewing | |
| Port Mirror | Supports port and aggregation group entry and exit directions | |
| port isolate | Supports port speed limit, with a speed limit granularity of 32Kbps | |
| port isolate | Supports port isolation settings | |
| Storm suppression | Supports unknown unicast, unknown multicast, and broadcast storm suppression | |
| Link Aggregation | Support static manual aggregation Support LACP dynamic aggregation | |
| VLAN | Access | |
| Trunk | ||
| hybrid | ||
| Support VLAN partitioning based on port, protocol, and MAC, VLAN tunnel | ||
| Voice VLAN | ||
| MAC | Support for static addition and deletion MAC address learning quantity limit Support dynamic aging time setting | |
| spanning tree | 802.1D Standard Spanning Tree (STP) 802.1w Fast Spanning Tree (RSTP) 802.1s Multi Spanning Tree (MSTP) | |
| Multicast | Support for static addition and deletion IGMP snooping Support for MLD Snooping Supports v1/2/3 dynamic multicast listening | |
| DDM | Supports SFP/SFP+DDM | |
| Extended functionality | ||
| ACL | Based on source MAC, destination MAC, protocol type, source IP, destination IP, L4 port number | |
| QOS | Classification based on 802.1p (COS) Based on DSCP classification Classification based on source IP, destination IP, and port number Support SP and WRR scheduling strategies Support for traffic speed limit CAR | |
| LLDP | Supports LLDP link discovery protocol | |
| User settings | Add/Remove Users | |
| log | User login, operation, status, and event logging | |
| Anti attack | DOS Defense Support CPU protection and limit the rate of sending CPU packets ARP binding (IP, MAC, PORT binding) | |
| authentication | Supports 802.1x port authentication Supports AAA certification | |
| network diagnostics | Supports ping, telnet, and trace | |
| system management | Device reset, configuration save/restore, upgrade management, time setting, etc | |
| management function | ||
| CLI | Support for serial command line management | |
| CLI | Support for serial command line management | |
| SSH | Support for SSH v1/2 remote management | |
| TELNET | Support telnet remote management | |
| WEB | Support for second tier settings, second and third tier viewing | |
| SNMP | SNMP V1/V2/V3 | |
| Support traps: cold start, warm start, link close, link open | ||
| RMON | Supports RMON v1 | |
| Other functions | Supports PoE configuration, PoE scheduling management, PoE watchdog, and PoE port timed restart Supports DHCP Snooping, Option82 Supports dynamic ARP detection Support TACACS+authentication Support DNS settings Support port security settings Support for MVR protocol Supports cable detection VCT function Supports UDLD protocol | |
