24 Gigabit PoE network ports+8 Gigabit optoelectronic multiplexing SFP ports+4 Gigabit SFP optical ports+1 Console port
Complies with the IEEE802.3af/at international standard, with a total power of 400W and a maximum single port power of 30W
Storage and forwarding switching mechanism, with a total switching capacity of up to 336Gbps and a packet forwarding rate of 96Mpps
Three layer network management, supporting business functions such as routing/DHCP/VLAN/MAC address/ACL/QoS
Supports ring network function, high-speed detection and self-healing function, with ring network self-healing time ≤ 12ms
Support security control strategies such as 802.1X authentication, ARP intrusion detection, IP source protection, DoS protection, etc
Support network protection functions such as STP/RSTP/MSTP spanning tree protocol, dynamic/static link aggregation, etc
Support web, TELNET, CLI, SSH, SNMP network maintenance and management methods

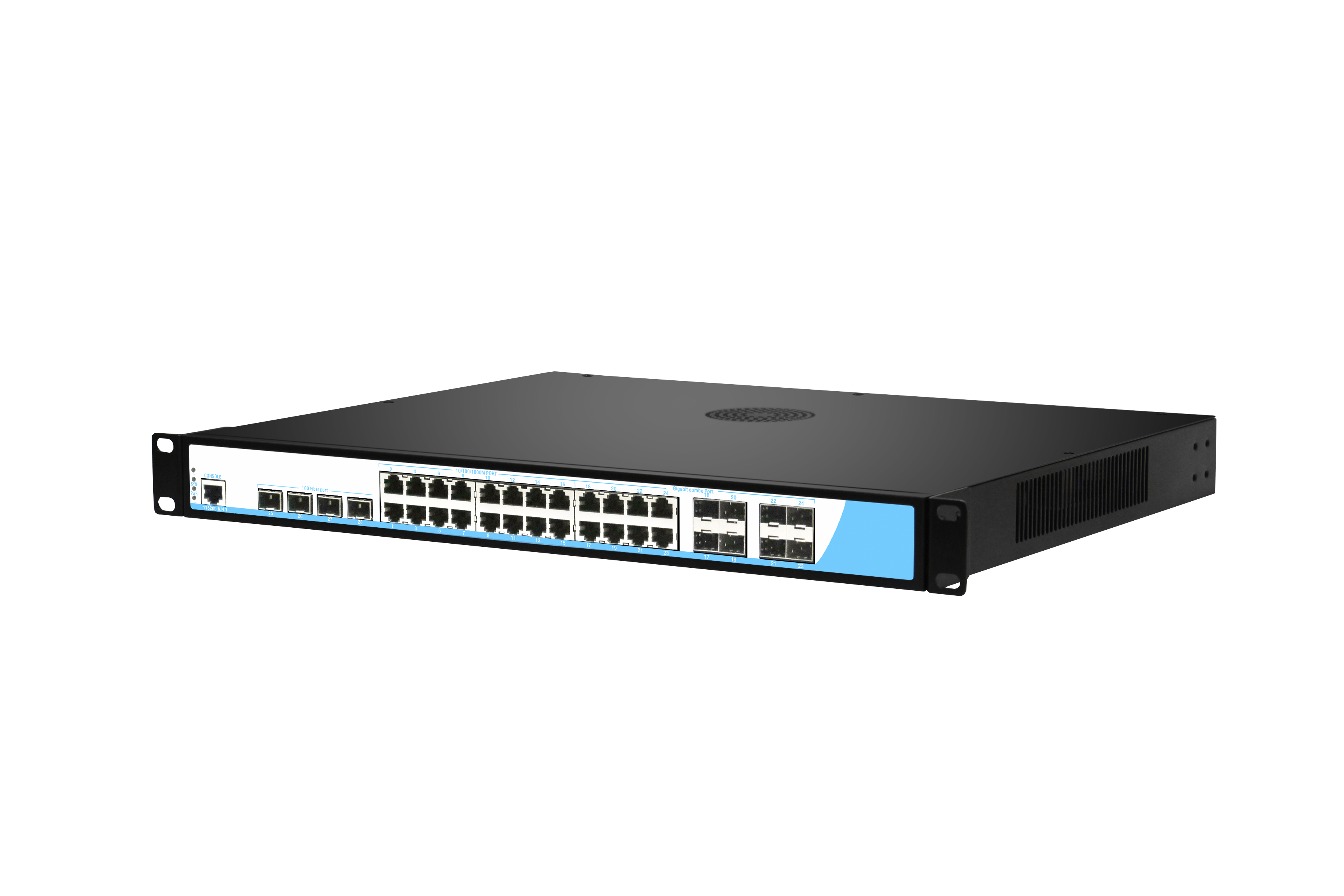

36 port 10 Gigabit managed POE switch, using 10/100/1000Mbps&10G industrial grade Ethernet optoelectronic switch motherboard, based on BCM high-quality industrial grade chip, users can choose a mixed configuration of optoelectronic ports at will. The access fiber medium adopts modular design, providing 24 10/100/1000 self adapting electrical ports (+POE), 8 multiplexed gigabit SFP optical ports/electrical ports, and 4 integrated 10G optical ports, providing sufficient bandwidth for aggregation and core data exchange; Provide high capacity switching capability and support ACL functionality based on three or four layers.
A comprehensive security control strategy and CPU protection policy improve fault tolerance, ensuring stable network operation and link load balancing; The device supports automatic DoS attack prevention and SNMP, IEEE 802.1, spanning tree and fast spanning tree protocols, link aggregation and other functions.
With simple and convenient installation and maintenance methods and rich business features, it helps users create a safe and reliable high-performance network. Mainly positioned at the core or convergence layer of user networks such as industrial parks, buildings, factories and mines, government agencies, and residential broadband; It can be widely used in Ethernet access scenarios such as small and medium-sized enterprises, internet cafes, hotels, schools, etc.
| General | ||
| product name | 36 port 10 Gigabit managed POE switch | |
| Model | ZT-IE6280S-24GPC8GS4XS | |
| Port Definition | 24 Gigabit POE power grid ports+8 Gigabit optical ports (optoelectronic multiplexing)+4 10G optical ports+1 management port | |
| network protocol | IEEE802.3AF（PoE） | |
| IEEE802.3AT（PoE+） | ||
| IEEE 802.3,10Base-T | ||
| IEEE 802.3u | ||
| IEEE 802.3ab | ||
| IEEE 802.3ae | ||
| IEEE 802.3x | ||
| IEEE 802.3ad | ||
| IEEE 802.1ab-2005，LLDP | ||
| IEEE 802.w | ||
| IEEE 802.1q | ||
| IEEE 802.1p，QoS/CoS | ||
| IGMP Snooping | ||
| DHCP Snooping /GMRP | ||
| POE parameters | PoE standard: Meets IEEE802.3af/IEEE802.3at Single port maximum: 15.4 W (IEEE 802.3af) Single port maximum: 30 W (IEEE 802.3at) PoE compatibility: IEEE 802.3af/at adaptive POE port output voltage: DC48-55V POE power supply core: 1/2+; 3/6- | |
| Network transmission medium | 10BASE-T: Cat3,4,5 UTP (≤ 100 meters) 100BASE-TX: Cat5 or above UTP (≤ 100 meters) 1000BASE-TX: Cat5 or above UTP (≤ 100 meters) | |
| Fiber optic indicators | Multimode fiber: 850nm, 1310nm Transmission distance: 550m/2Km Single mode fiber: 1310nm, 1550nm Transmission distance: 20/40/60/80/100/120Km | |
| LED indication | PWR | Always on: The device is powered on |
| Not on: The device is not powered on | ||
| SYN | Flashing: The system is operating normally | |
| Not lit: The system is not running | ||
| POE | Always on: Power supply is normal | |
| Not on: abnormal power supply | ||
| LINK | Always on: The link is normal | |
| Not lit: Link not working | ||
| ACT | Always on: No data transmission | |
| Flashing: Data transmission | ||
| Not lit: Link not working | ||

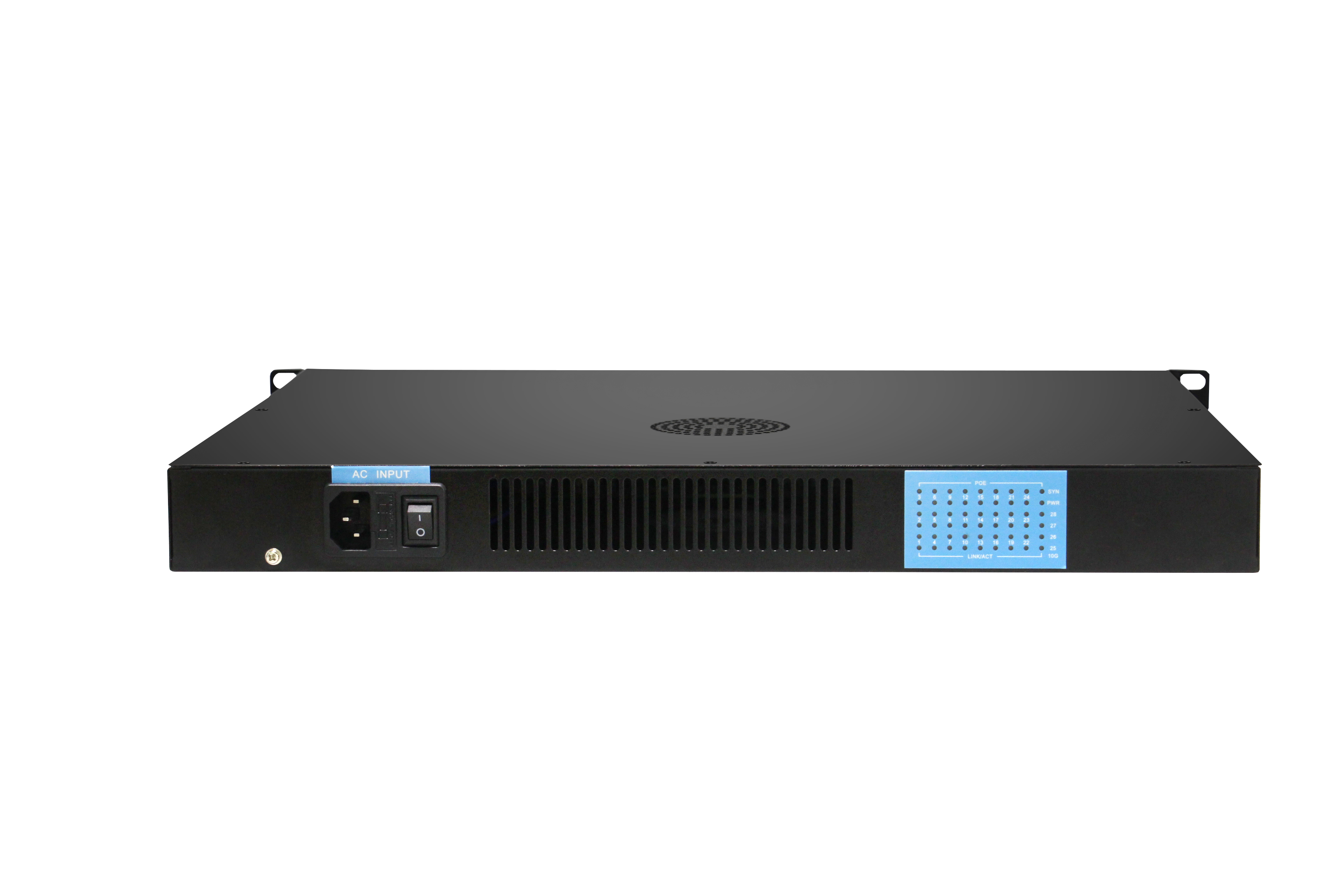

| power supply | Machine input voltage: AC 100-240V; Output DC52V7.69A Total power: 400W | |
| Dimension | Product size (L × W × H) 440mm * 360mm * 45mm Packaging size (L × W × H) 570mm * 450mm * 90mm Product weight: 3.63kg Packaging weight: 4.39kg | |
| work environment | Working temperature: -20~50 ° C Storage temperature: -40~85 ° C Working humidity: maximum relative humidity of 90%, non condensing Storage humidity: maximum relative humidity of 95%, non condensing Working height: maximum 10000 feet (3000 meters) Storage height: up to 10000 feet (3000 meters) | |
| authentication | CE、FCC、ROHS、CCC | |
| mean time between failures | 300000 hours | |
| packing list | 1. Switch: 1 set 2. Instructions: 1PCS 3. Certificate of conformity and warranty card: 1PCS 4. Serial port cable: 1 piece 5. Power cord: 1 piece 6. Hanging ears: one pair 7. User CD: 1 piece | |
| warranty | 2 years | |
| TECHNICAL INDEX | ||
| exchange capacity | 336Gbps | |
| packet forwarding rate | 96Mpps | |
| Package cache | 12M | |
| Memory capacity | 256MB | |
| Flash memory capacity | 32MB | |
| MAC address table | 16K | |
| VLANs | 4096 | |
| jumbo frame | 9.2Kbytes | |
| Layer 2 software functions | ||
| Port Management | Enable/disable ports | |
| Speed, duplex, MTU settings | ||
| Flow control settings | ||
| Port information viewing | ||
| Port Mirror | Supports port access direction and VLAN mirroring | |
| line rate | Supports port speed limit, with speed limit granularity determined by the chip | |
| port isolate | Supports port isolation settings | |
| Storm suppression | Supports unknown unicast, unknown multicast, and broadcast storm suppression | |
| Link Aggregation | Support static manual aggregation | |
| Support LACP dynamic aggregation | ||
| VLAN | Access | |
| Trunk | ||
| hybrid | ||
| Supports VLAN partitioning based on port, protocol, and MAC | ||
| Support GVRP dynamic VLAN registration | ||
| Voice VLAN | ||
| MAC | Support for static addition and deletion | |
| MAC address learning quantity limit | ||
| Support dynamic aging time setting | ||
| 生成樹(shù) | Supports 802.1d (STP) Supports 802.1w (RSTP) Supports 802.1s (MSTP) | |
| IGMP-snooping | Support for static addition and deletion | |
| Three layer software and routing function | ||
| Interface Configuration | Support for SVI ports | |
| ARP | Supports static ARP Support setting ARP aging time | |
| VRRP | Support VRRP routing backup | |
| ND | Supports IPv6_ ND configuration | |
| Routing Function | Static routing RIP (V1/V2)/OSPF (V2)/BGP RIP/OSPF/BGP supports routing authentication function RIP/OSPF/BGP supports routing introduction and filtering functions | |
| Extended functionality | ||
| ACL | Based on source MAC, destination MAC, protocol type, source IP, destination IP, L4 port number Supports time range time period management | |
| QOS | Classification based on 802.1p (COS) Based on DSCP classification Classification based on source IP, destination IP, and port number Support SP, WRR, DRR scheduling strategies Support for traffic speed limit CAR | |
| LLDP | Supports LLDP link discovery protocol | |
| User settings | Add/Remove Users | |
| log | User login, operation, status, and event logging | |
| network diagnostics | DOS Defense | |
| Support CPU protection and limit the rate of sending CPU packets | ||
| ARP binding (IP, MAC, PORT binding) | ||
| network diagnostics | Supports ping, telnet, and trace | |
| system management | Device reset, configuration save/restore, upgrade management, time setting, etc | |
| management function | ||
| CLI | Support for serial command line management | |
| TELNET | Support telnet remote management | |
| WEB | Support for second tier settings, second and third tier viewing | |
| Remote Upgrade | Support version upgrade through web and local | |
