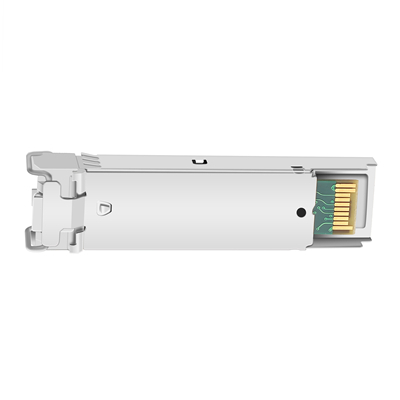

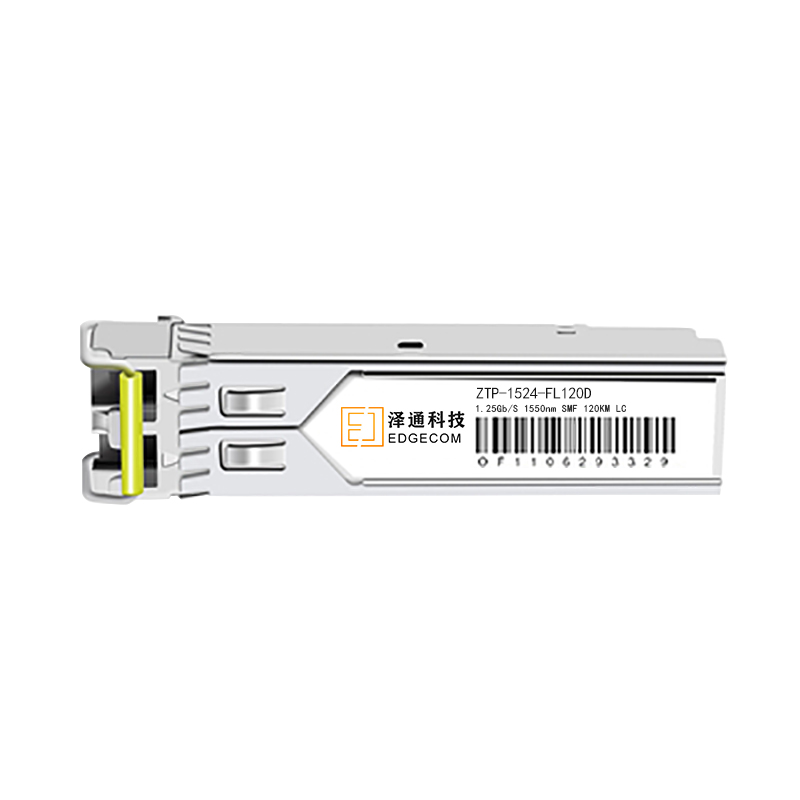

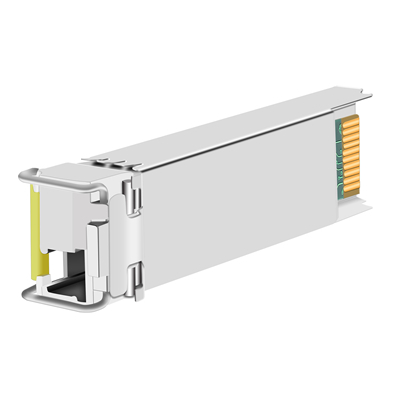

ZTP-1524-DL120D is a 1.25Gbps SFP encapsulated transceiver that meets MSA standards. It is designed, assembled, and tested in ISO certified manufacturing facilities, making it an ideal choice for meeting various optical network applications
Hot swappable SFP footprint
Supports data rates up to 1.25Gbps
Single 3.3V power supply and industrial low power consumption
The maximum link length on SMF fiber can reach 120 kilometers
Meets Level 1 laser safety requirements
Compliant with RoHS 6 (lead-free)
Working environment temperature: 0-70 ℃ (optional for expansion/industrial grade)
Compliant with SFP MSA specifications
low power consumption
| model | ZT-1524-DL120D |
| package | SFP |
| Standards and Protocols | 1000BASE-EZX |
| rate | 1.25Gbps |
| wavelength | 1550nm |
| medium | SMF |
| Distance | 120KM |
| interface | Duplex LC |
| Detector Type | FP |
| emitter type | PIN |
| Emission light power | -9～-3dBm |
| receiver sensitivity | ≦-17dBm |
