8-way 100 Mbps industrial Ethernet switch, supporting 8 10/100Base-T (X) ports. The product meets FCC, CE, and ROHS standards. ZT-IE6080-8TX has a working temperature of -40 ℃ to 75 ℃, and its strong robustness can adapt to various harsh environments. It can also be conveniently placed in a compact control box. The installation characteristics of the guide rail, wide temperature operation, and IP40 protection level shell and LED indicator light make it a plug and play industrial device using ZT-IE6080-8TX, providing reliable and convenient solutions for users' Ethernet device networking. It can be widely used in industrial scenarios such as comprehensive energy, smart transportation, smart factories, smart cities, smart mines, and Ethernet access.
Ensure reliable data transmission and long working life
Supports full duplex or half duplex modes with automatic negotiation capability
The network interface supports fully automatic cross recognition
Built in storage and forwarding mechanism, supporting multiple protocols
Green and energy-saving, using low-power CPUs
Working power supply: DC12-52V provides reverse protection and 4A overcurrent protection
Lightning surge protection (power supply): 8000A (surge waveform of 8/20 μ）
Meets industrial level operational standards, with an average time between failures of over 300000 hours
| Standards and Protocols | IEEE802.3-10Base-T IEEE802.3u-100Base-T(x) IEEE802.3x - Flow Control |
| interface | Electrical port: 8x10/100Base-T (X), RJ45, automatic detection Full/half duplex mode, MDI/MDI adaptive |
| LED indicator light | Power indicator light: PWR |
| Exchange Properties | Transmission method: storage and forwarding Backplane bandwidth: 1.6G MAC address: 2K Application level: Level 2 Exchange latency:<3us Cache: 1Mbit Power consumption:<3W |
| power supply | Input voltage: DC12-52V (dual power redundancy backup) Supports dual power redundancy Support reverse protection Access terminal: Phoenix terminal |
| consumption | Empty: 1W@24VDC (Non PoE) the full load: 3W@24VDC (Non PoE) |
| work environment | Working temperature: -40 ℃~75 ℃ Storage temperature: -40 ℃~85 ℃ Relative humidity: 5%~95% (without condensation) |

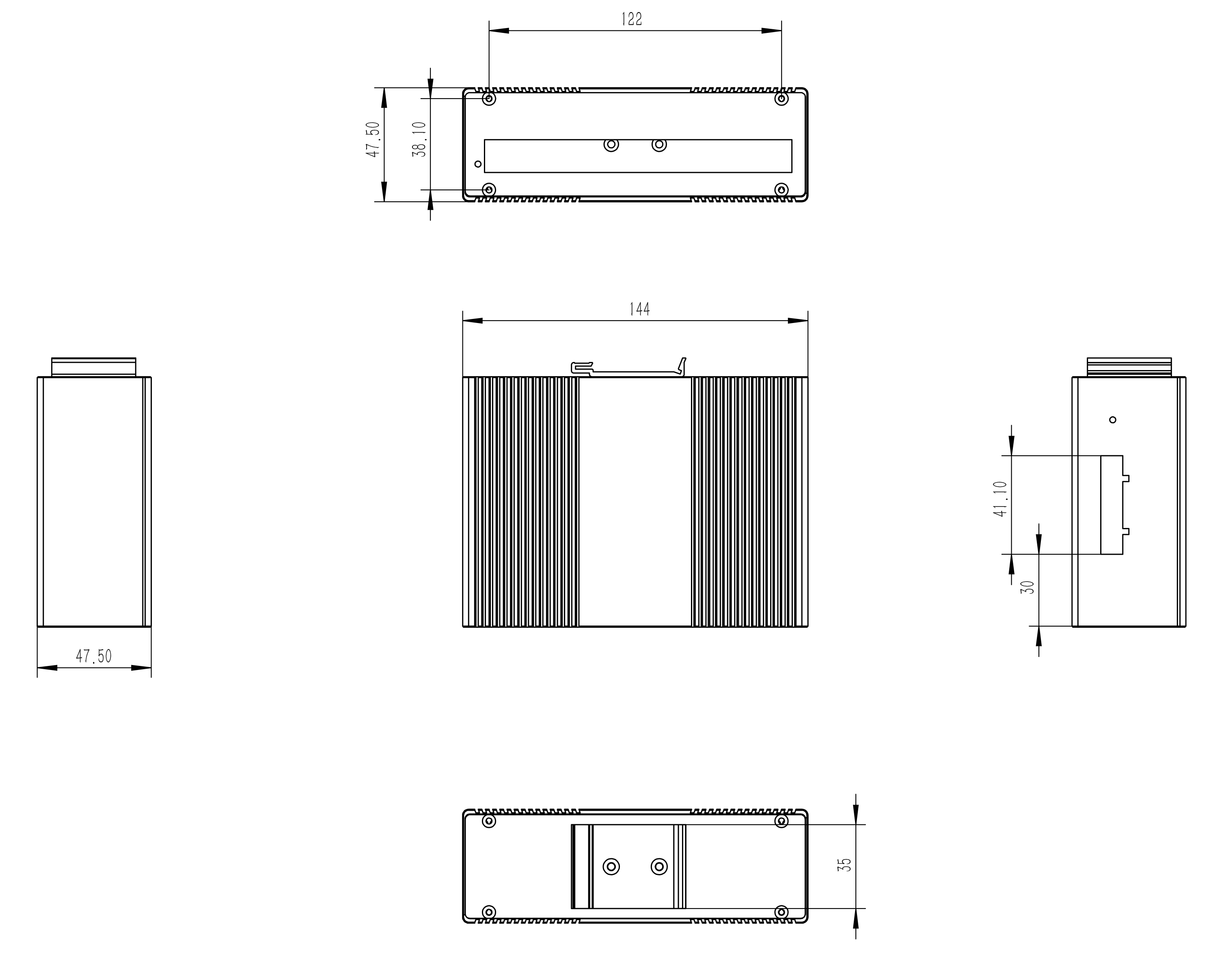

| mechanical structure | Housing: IP40 protection level, aluminum alloy housing Installation: DIN rail mounted Size: (length × wide × Height) 143x101x44mm Product weight: 0.64Kg |
| Industry standards | IEC 61000-4-2 (ESD, Electrostatic Discharge Immunity), Level 4 Air discharge: ± 15kV ● Contact discharge: ± 8kV IEC 61000-4-5 (Surge, Surge Immunity), Level 4 Power supply: common mode ± 4kV, differential mode ± 2kV Ethernet interface: ± 4kV Impact: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
| authentication | CE、FCC、RoHS、ISO9001、Detected by the Ministry of Public Security |
| warranty | 5 years |
