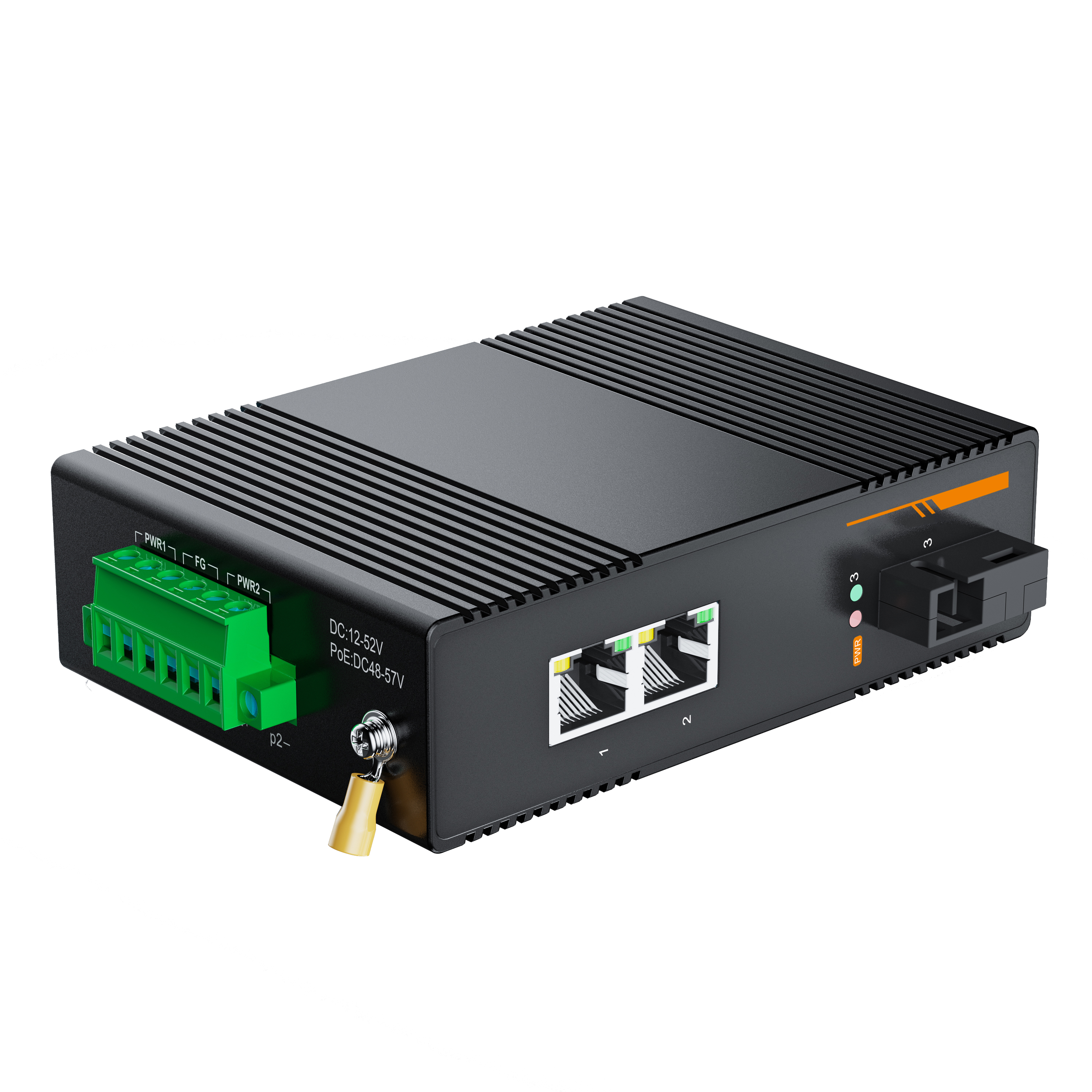

Two gigabit PoE ports and one gigabit FX optical port industrial Ethernet switch, supporting two 10/1001000Base-T (X) ports and one 1000Base-X optical port. The product complies with FCC, CE, and RoHS standards. ZT-IE6050-2GP1GS-WA has a working temperature of -40 ℃ to 75 ℃, and its strong robustness can adapt to various harsh environments. It can also be conveniently placed in a compact control box. The installation characteristics of the guide rail, wide temperature operation, and the IP40 protection level shell and LED indicator light make the ZT-IE6050-2GP1GS-WA a plug and play industrial device, providing reliable and convenient solutions for users' Ethernet device networking. It can be widely used in industrial scenarios with Ethernet access such as comprehensive energy sources, smart transportation, smart factories, smart cities, and smart mines.
Adopting high-quality optoelectronic integrated modules to provide good optical and electrical characteristics
Ensure reliable data transmission and long working life
Supports full duplex or half duplex modes with automatic negotiation capability
The network interface supports fully automatic cross recognition
Built in storage and forwarding mechanism, supporting multiple protocols
Green and energy-saving, using low-power CPUs
Working power supply: DC12V-52V provides reverse protection and 4A overcurrent protection
SC/FC/ST/LC/optional
Lightning surge protection (power supply): 5000A (surge waveform of 8/20 μ S)
Meet the industrial operation standard, and the Mean time between failures is more than 300000 hours
| Standards and Protocols | IEEE802.3-10Base-T IEEE802.3u-100Base-Tx IEEE802.3ab-1000Base-T(x) IEEE802.3x–Flow control IEEE802.3af/at |
| interface | Electrical port：2x10/100/1000Base-T(X)，RJ45，Automatic flow control Port：1x1000Base-F(X)，SC/FC/ST/LC Full/Half Duplex Mode，MDI/MDI-X Auto detect |
| LED indicator light | Power indicator light：PWR |
| Exchange Properties | Transmission method: storage and forwarding Backplane bandwidth: 6G MAC address: 8K Application level: Level 2 Power consumption:<3W Exchange latency:<3us |
| PoE parameters | PoE standard: Meets IEEE802.3af/IEEE802.3at Single port maximum: 15.4 W (IEEE 802.3af) Single port maximum: 30 W (IEEE 802.3at) PoE compatibility: IEEE 802.3af/at adaptive PoE port output voltage: DC 48-57V PoE power supply core: 1/2+; 3/6- |
| power supply | Input voltage: DC12-52V Supports dual power redundancy Supports reverse protection Access terminal: Phoenix terminal |
| consumption | Empty: 1W@24VDC (Non PoE) Full load: 3W@24VDC (Non PoE) |
| work environment | Working temperature: -40 ℃~75 ℃ Storage temperature: -40 ℃~85 ℃ Relative humidity: 5%~95% (without condensation) |

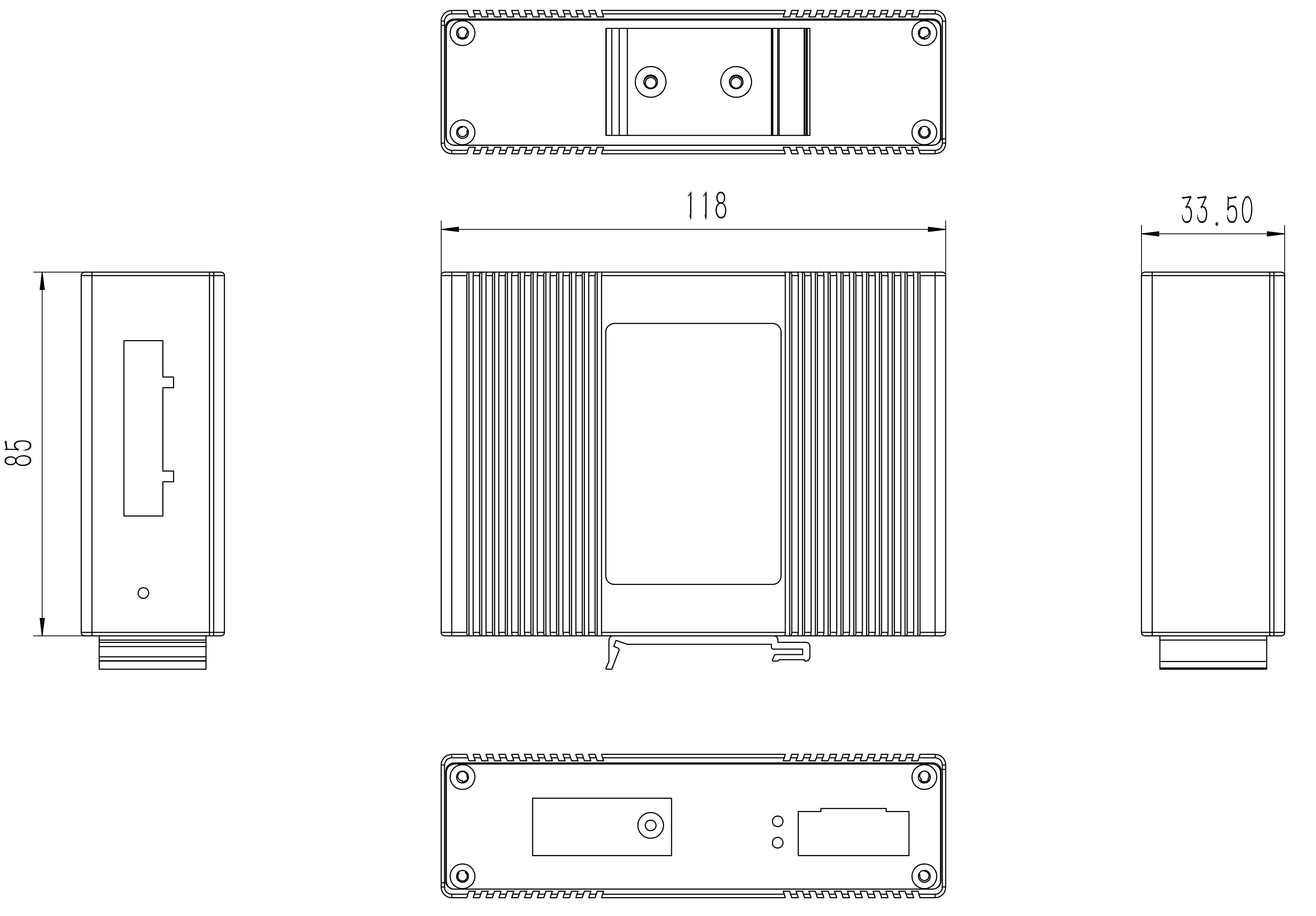

| mechanical structure | Housing: IP40 protection level, aluminum alloy housing Installation: DIN rail mounted Size: (length × wide × Height) 118x86x39mm Product weight: 0.36Kg |
| Industry standards | IEC 61000-4-2 (ESD, Electrostatic Discharge Immunity), Level 4 Air discharge: ± 15kV ● Contact discharge: ± 8kV IEC 61000-4-5 (Surge, Surge Immunity), Level 4 Power supply: common mode ± 4kV, differential mode ± 2kV Ethernet interface: ± 4kV Impact: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
| authentication | CE, FCC, RoHS, ISO9001, Ministry of Public Security testing |
| warranty | 5 years |
